GF-604EI

GF-604EI

■Adopt Intel? 6,7th generation, low power processor (regularly use i3-6100U)
■1 GigaLAN+4 POE (PSE) Intel high-performance Gigabit Ethernet ports
■Mini PCIe / M.2 E-key socket, suitable for 4G , Wifi , AI module
■Support M.2 NGFF SSD, shockproof, high speed, long service life
■6 USB sockets, 2 COM ports, support RS232/485
■12~24V wide voltage input, power consumption within 90W

Processor System

CPU CPU board with Intel? Skylake/Kaby Lake U-series processor

Memory

Slot Number 1×Notebook memory slot supports DDR4 2133MHz up to 16GB

Graphics (optional)

VGA（optional 1） analog signal display interface, VGA+HDMI supports synchronous/asynchronous dual display function
HDMI（optional 2） high-definition multimedia display interface, side stand standard HDMI interface

Storage

HDD 128G M.2 SSD，customized capacity, expandable 2.5-inch hard drive

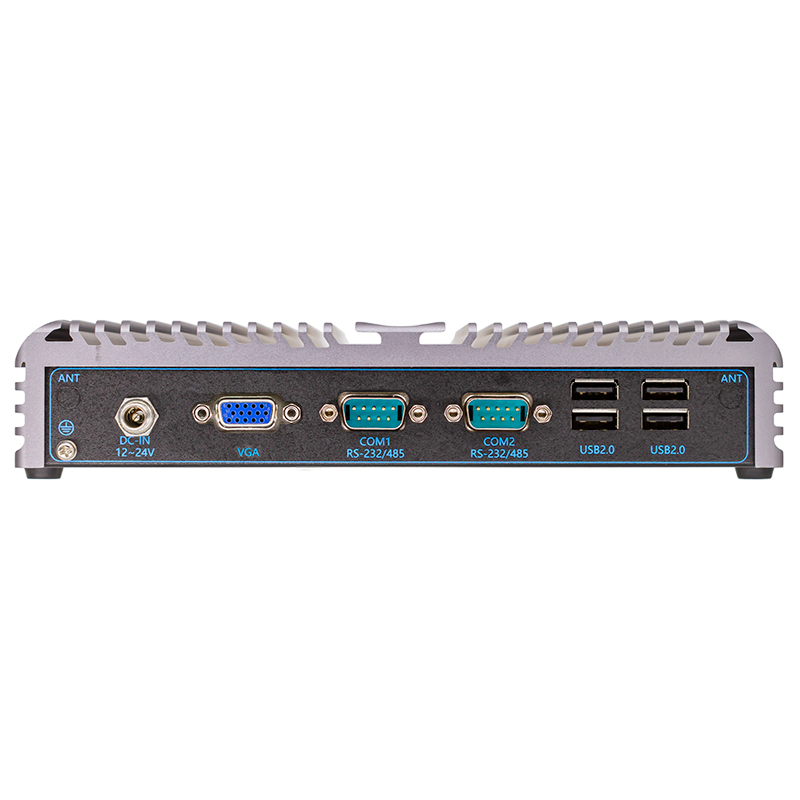

Rear panel (optional)

DC IN 1， DC-IN 12~24V
VGA 1（optional）
HDMI 1（oiptional）
USB 4×USB2.0
COM 2, support RS232/RS485, switch by BIOS, optional 5V/12V live

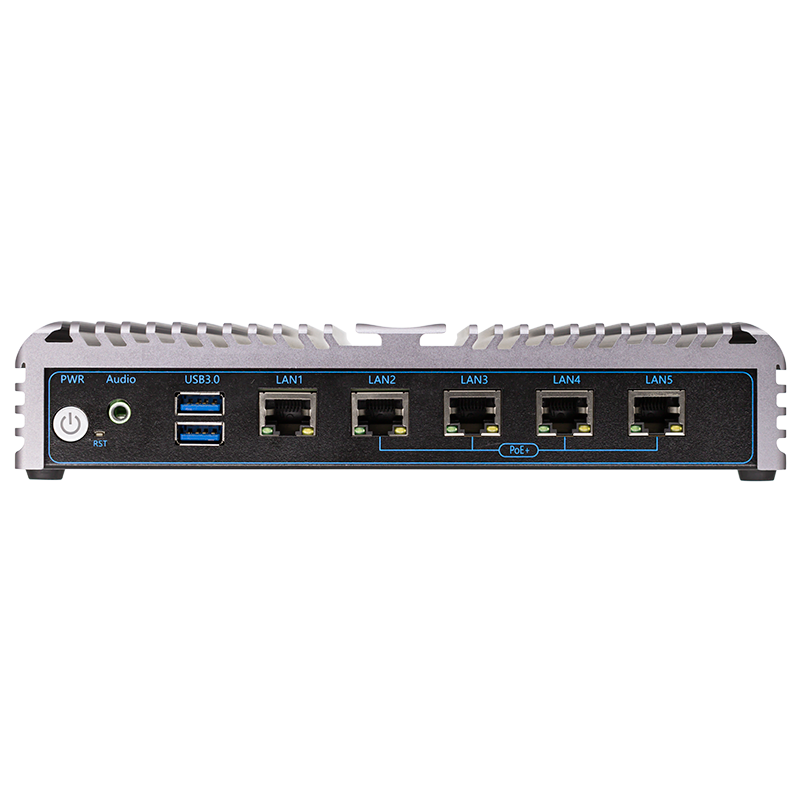

Front panel

PWR Switch 1×PWR SW+PWR LED
RST Switch 1
Audio 1×Line-out
USB 2×USB3.0
LAN 5×RJ45, support 10/100/1000Mbps adaptive network, LAN2~5 support PoE (48V/15W)

Physical properties

Dimensions (W×D×H)/Weight Without ear stand: 218×140×42 With ear stand: 245×140×45mm about 2.00KG
Material/Surface High-quality aluminum extrusion alloy, galvanized steel sheet/silver gray

Environment

OperationTemperature: -20~60℃, Humidity: 0%~90%, non-condensing
StorageTemperature: -40~80℃, Humidity: 0%~90%, non-condensing
